第二节：iOS 安装包-上传

[toc]

iOS 安装包2-上传

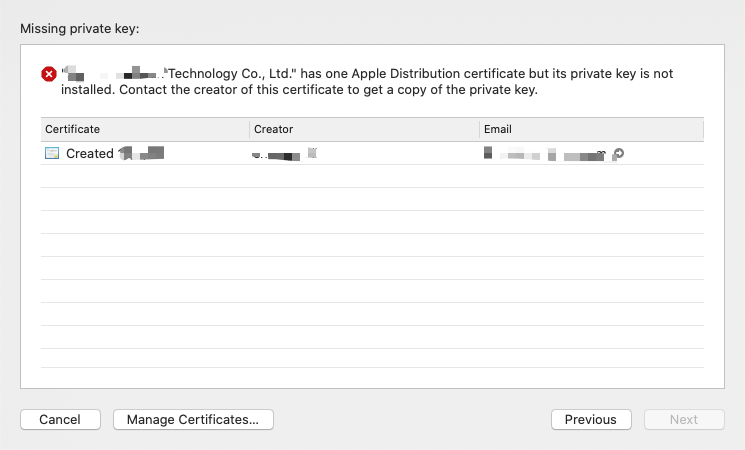

image-20210123122550446

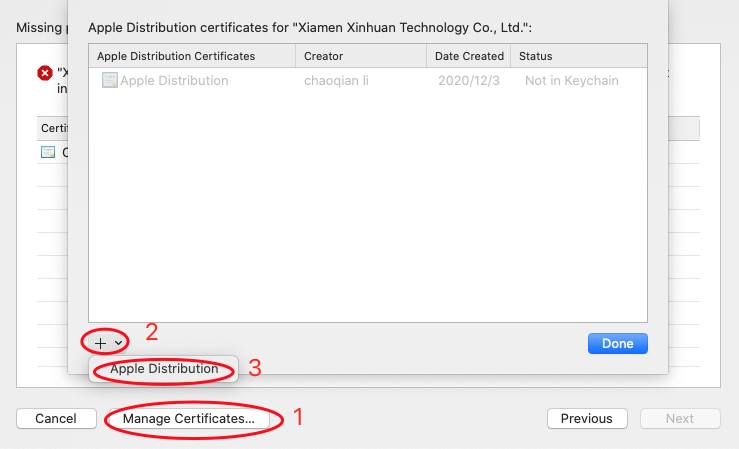

image-20210123122846919

一、ApplicationLoader -> Transporter

1、ApplicationLoader(新版本的xcode11后不再提供)

以前：使用Application loader上传安装包。

现在：升级xcode11后，你会发现找不到Application loader这个工具了。(附：实际上Application loader只是对altool的封装。）
去查看xcdoe11的更新说明，有这样一段话

Xcode supports uploading apps from the Organizer window or from the command line with xcodebuild or xcrun altool. Application Loader is no longer included with Xcode. (29008875)

2、Transporter

ApplicationLoader不能使用了，那我们使用什么。苹果在2019年10月份上线了Transporter。

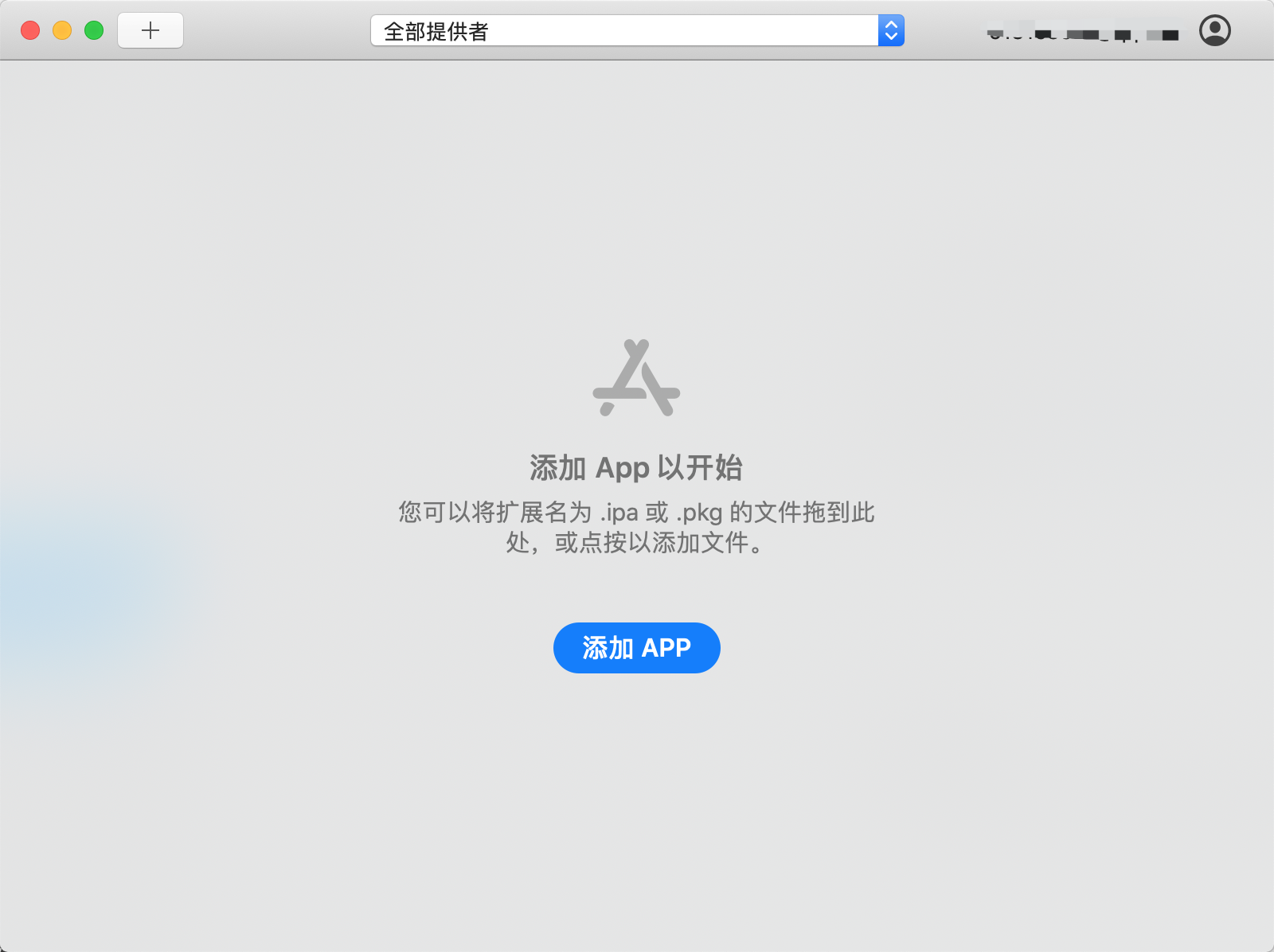

在 App Store Connect 中创建 App 记录后，您便可以通过 Xcode、macOS 版 Transporter 或 altool 上传构建版本。其界面如下：

image-20200921095227639

如果您使用 App Store Connect API，则建议您通过命令行工具 Transporter 和 JSON 网络令牌（JWT）验证来上传二进制文件。用于 API 的 JWT 也可以用于上传二进制文件。

二、xcrun altool

Xcode11前：旧版本的altool只支持ipa、pkg的上传。

xcode11后，新版本的altool在旧版本的基础上，额外支持了各种文件压缩包的上传，应该就是mac、ipad、iphone应用和其他相关打包产物的集合包。

altool 位于：/Applications/Xcode.app/Contents/Developer/usr/bin/altool。

altool位置

1、查看xcrun altool的用法

终端执行xcrun altool命令，可见其命令用法如下：

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
MacBook-Pro:~ $ xcrun altool
Copyright (c) 2009-2019, Apple Inc. Version 4.00.1181

Usage: altool --validate-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --upload-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --notarize-app -f <file> --primary-bundle-id <bundle_id> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>} [--asc-provider <provider_shortname>]
       altool --notarization-info <uuid> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --notarization-history <page> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>} [--asc-provider <provider_shortname>]
       altool --list-apps -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --store-password-in-keychain-item <name_for_keychain_item> -u <username> -p <password>

Authentication: Most commands require authorization.
                There are two methods available: user name with password, and apiKey with apiIssuer.

                -u, --username <username> Username. Required to connect for validation, upload, and notarization.
                -p, --password <password> Password. Required if username specified and apiKey/apiIssuer are not.
                                          If this argument is not supplied on the command line, it will be read from stdin.
                                          Alternatively to entering <password> in plaintext, it may also be specified using a '@keychain:'
                                          or '@env:' prefix followed by a keychain password item name or environment variable name.
                                          Example: '-p @keychain:<name>' uses the password stored in the keychain password item named <name>.
                                                                         You can create and update keychain items with the
                                                                         --store-password-in-keychain-item command.
                                          Example: '-p @env:<variable>'  uses the value in the environment variable named <variable>

                --apiKey <api_key>        apiKey. Required for JWT authentication while using validation, upload, and notarization.
                                          This option will search the following directories in sequence for a private key file
                                          with the name of 'AuthKey_<api_key>.p8':  './private_keys', '~/private_keys', '~/.private_keys',
                                          and '~/.appstoreconnect/private_keys'.
                --apiIssuer <issuer_id>   Issuer ID. Required if --apiKey is specified.

 -f, --file <file>                   <file> specifies the path to the file to process.
 -t, --type {osx | ios | appletvos}  Specify the platform of the file.

     --primary-bundle-id <bundle_id> Used with --notarize-app to uniquely identify a package.

     --asc-provider <provider_shortname> Required with --notarize-app and --notarization-history when a user account is associated with multiple
                                         providers.

 -v, --validate-app                  Validates an app archive for the App Store. Authentication and -f are required.
     --upload-app                    Uploads the given app archive to the App Store. Authentication and -f are required.
     --list-apps                     Display all apps associated with your account(s).

     --notarize-app                  Uploads the given app package, dmg or zip file for notarization. Authentication, -f,
                                     and --primary-bundle-id are required. --asc-provider is required for an account associated with multiple providers.
                                     If successful, the UUID associated with the upload is returned.

     --notarization-info <uuid>      Returns the status and log file URL of a package previously uploaded for notarization with the specified <uuid>.
                                     Authentication is required. The log file can be retrieved with 'curl <log_file_url>'.

     --notarization-history <page>   Returns a list of all uploads submitted for notarization. <page> specifies a range of entries where 0
                                     returns the most recent number of entries. A new page value will be returned which can be used as the
                                     <page> value to the next use of --notarization-history and so forth until no more items are returned.
                                     Authentication is required. --asc-provider is required for an account associated with multiple providers.

     --store-password-in-keychain-item <name_for_keychain_item> -u <username> -p <password>
                                     Stores the password <password> in the keychain item named <name_for_keychain_item> associated with the account <username>.
                                     If an item with that name and account already exists in the keychain, its password will be updated. Otherwise a new item
                                     is created with that name. You can use this keychain item with the -p option to mask your password with other commands.
                                     Example: altool --store-password-in-keychain-item MY_SECRET -u jappleseed@apple.com -p "MyP@ssw0rd!@78"
                                              altool --notarize-app -u jappleseed@apple.com -p @keychain:MY_SECRET [...]

     --output-format {xml | normal}  Specifies how the output is formatted. 'xml' displays the output in a structured format; 'normal' displays in
                                     an unstructured format (default).

     --verbose                       Enable logging output.

 -h, --help                          Display this output.

2、查看ipa包验证和上传使用的xcrun altool命令

我们主要看两个命令：

1
2
Usage: altool --validate-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --upload-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}

三、xcrun altool验证上传(方式1：username+password方式)

将我们查看到的两个命令：

1
2
Usage: altool --validate-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}
       altool --upload-app -f <file> -t <platform> -u <username> {[-p <password>] | --apiKey <api_key> --apiIssuer <issuer_id>}

使用 username+password 方式 改为最终的形如：

1
2
xcrun altool --validate-app -f ../output/Debug-iphoneos/Runner/Runner.ipa -t ios --verbose -u 账号 -p 密码
xcrun altool --validate-app -f ../output/Debug-iphoneos/Runner/Runner.ipa -t ios --verbose -u 账号 -p 专用密码

1、问题1Please sign in with an app-specific password

1.1、错误详情及分析

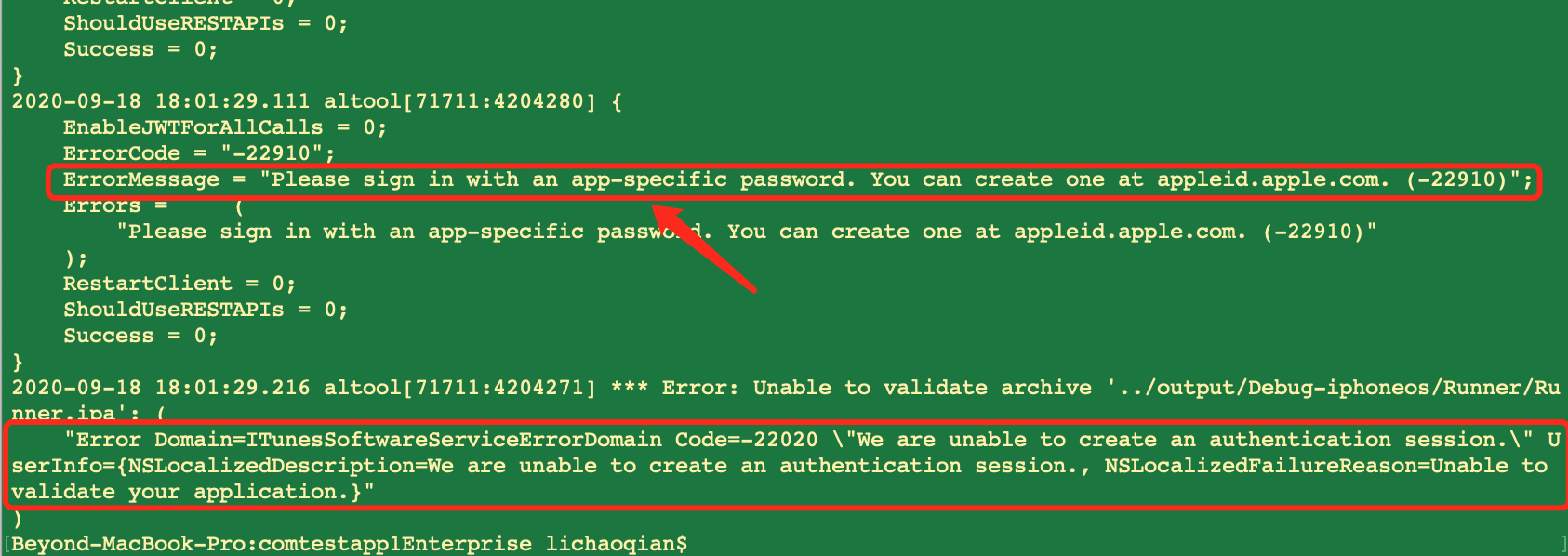

使用非专用密码时候的错误截图如下： image-20200918190110153

提示信息：Please sign in with an app-specific password. You can create one at appleid.apple.com 。这是因为自己账号开启了二重验证，所以这里的密码不能使用原始的明文密码，而应该使用专用密码。

1.2、创建生成专用密码

解决办法：在Apple官网https://www.apple.com.cn/登陆你的账号，并进入”管理你的Apple ID“。

image-20200918185022063

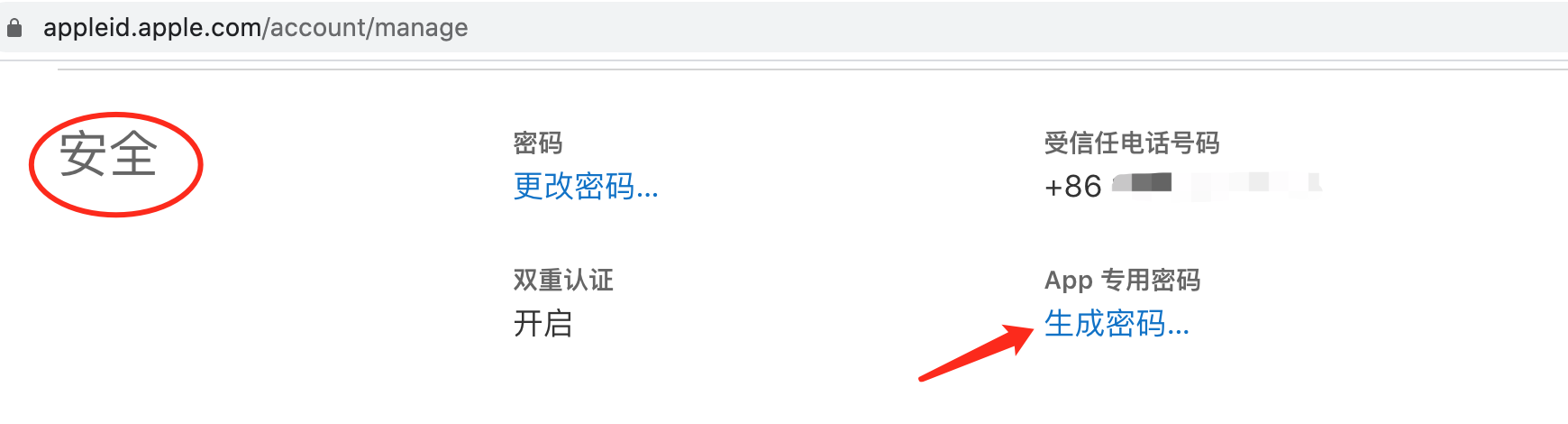

在管理密码的地方有一个App专用密码，点击Generate an App-Specific Password，生成专用密码。

image-20200918185328249

1.3、管理生成的专用密码

点击”查看记录“，可查看管理过往专用密码。

image-20200918185521612

2、问题2Invalid Provisioning Profile. The provisioning profile included in the bundle com.dvlproad.autopackage [Payload/Runner.app] is invalid.

使用专用密码，进行

1
xcrun altool --validate-app -f ../output/Debug-iphoneos/Runner/Runner.ipa -t ios --verbose -u 12345678@qq.com -p lnaa-xxxx-yyyy-zzzz

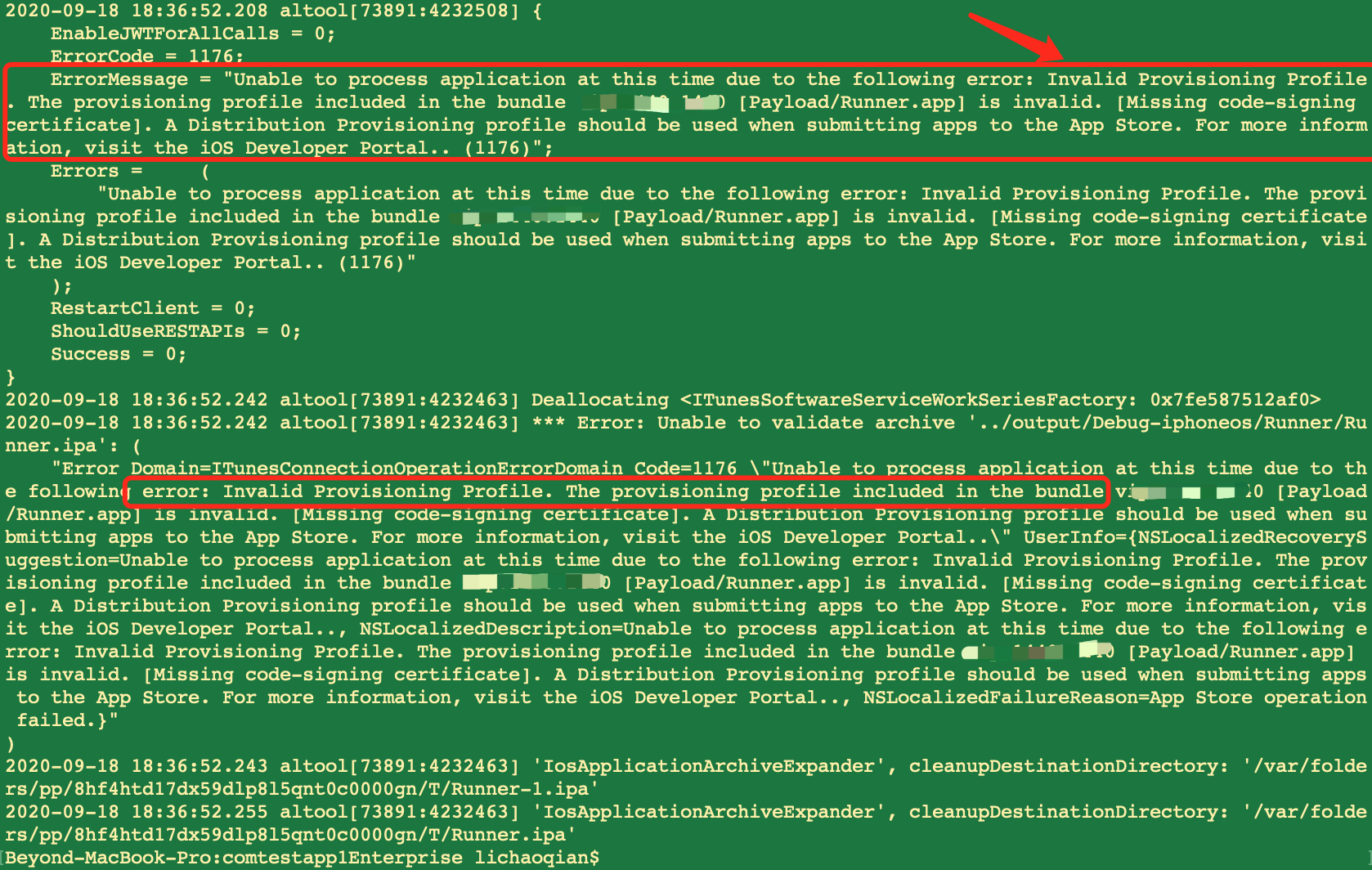

出现了新错误，新错误截图如下： image-20200918190727435

原因：

1、你打出来的包不是生产环境，比如你打的是dev环境

2、

四、xcrun altool验证上传(方式2：apiKey+apiIssuer方式)

xcrun altool有双重认证限制后，不能直接使用账号密码了，只能使用新的-apiKey 、–apiIssuer。

所以，最终的验证、上传的两个命令形如：

1
2
3
xcrun altool --validate-app -f xxx/xxx/xxx.ipa -t ios --apiKey xxxxxxxx --apiIssuer xxxxxx --verbose  --output-format xml

xcrun altool --upload-app -f xxx/xxx/xxx.ipa -t ios --apiKey xxxxxxxx --apiIssuer xxxxxx --verbose  --output-format xml

2个命令分别对应 验证IPA 和 上传IPA，都需要使用3个参数ipa路径、apiKey、apiIssuer

①、ipa路径：用xcodebuild打包或用OrganizerExport导出的App store包。

②、apiKey和apiIssuer需要去开发者官网-用户和访问-密钥-去新增。

1、准备xcrun altool上传参数中的apiKey和apiIssuer

1.1、创建生成apiKey和apiIssuer

apiKey和apiIssuer需要去开发者官网-用户和访问-密钥-去新增。如下图流程

新增一个密钥，名称和访问者可以自由填写


生成完成后，IssuerID就是apiIssuer，密钥ID就是apiKey，并且还有一个API密钥可以下载。注意此秘钥文件只能下载一次，请妥善保存


1.2、下载保存apiKey和apiIssuer

创建生成apiKey和apiIssuer后，按照我们之前在终端执行的xcrun altool命令提示有如下说明：

1
2
3
4
5
--apiKey <api_key>        apiKey. Required for JWT authentication while using validation, upload, and notarization.
                          This option will search the following directories in sequence for a private key file
                          with the name of 'AuthKey_<api_key>.p8':  './private_keys', '~/private_keys', '~/.private_keys',
                          and '~/.appstoreconnect/private_keys'.
--apiIssuer <issuer_id>   Issuer ID. Required if --apiKey is specified.

即：我们需要把刚才下载好的密钥文件放到这里面的其中一个文件夹里，它会按顺序去查找。

这里我们就选择~/private_keys这个位置吧，即在自己用户目录下/Users/xxx/private_keys新建了个private_keys文件夹，并把密钥文件放进去的。

2、使用xcrun altool验证上传

在确定完ipa包验证和上传使用的xcrun altool命令和上传参数中的apiKey和apiIssuer后，我们就可以开始使用xcrun altool验证上传了。

2.1、xcrun altool验证

验证结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
2019-11-13 11:36:56.773 altool[3970:100440] Deallocating <ITunesSoftwareServiceWorkSeriesFactory: 0x7fa5d6d06610>
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>os-version</key>
    <string>10.14.6</string>
    <key>success-message</key>
    <string>No errors validating archive at '/Users/xxx/Desktop/altools.ipa'</string>
    <key>tool-path</key>
    <string>/Applications/Xcode.app/Contents/SharedFrameworks/ContentDeliveryServices.framework/Versions/A/Frameworks/AppStoreService.framework</string>
    <key>tool-version</key>
    <string>4.00.1181</string>
</dict>
</plist>
2019-11-13 11:36:

等到提示No errors validating archive at xxx时就代表验证成功了，可以上传了。

4.2、xcrun altool上传

上传结果

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2019-11-13 11:49:55.382 altool[4093:102055] [2019-11-13 11:49:55 CST] <main> DBG-X: Returning 0
<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE plist PUBLIC "-//Apple//DTD PLIST 1.0//EN" "http://www.apple.com/DTDs/PropertyList-1.0.dtd">
<plist version="1.0">
<dict>
    <key>os-version</key>
    <string>10.14.6</string>
    <key>success-message</key>
    <string>No errors uploading '/Users/xxx/Desktop/altools.ipa'</string>
    <key>tool-path</key>
    <string>/Applications/Xcode.app/Contents/SharedFrameworks/ContentDeliveryServices.framework/Versions/A/Frameworks/AppStoreService.framework</string>
    <key>tool-version</key>
    <string>4.00.1181</string>
</dict>
</plist>

等到提示No errors uploading时就代表上传成功了。

五、上传结果的查看

可以去开发者中心-活动里面查看一下是否有构建版本
